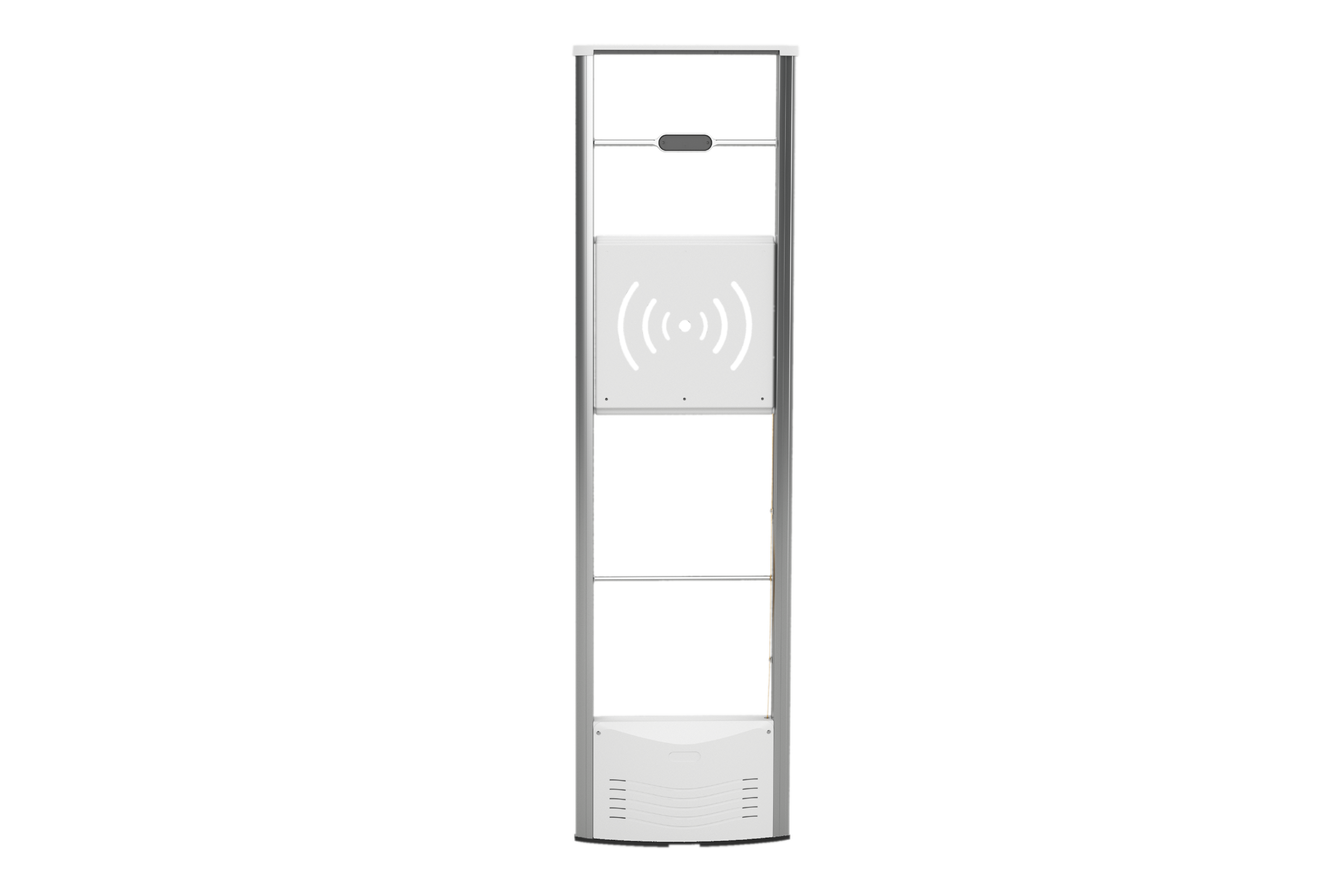

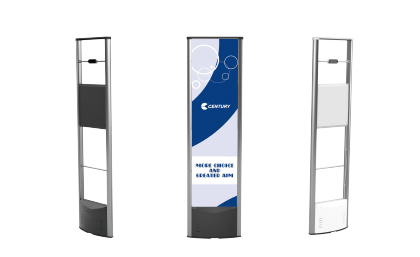

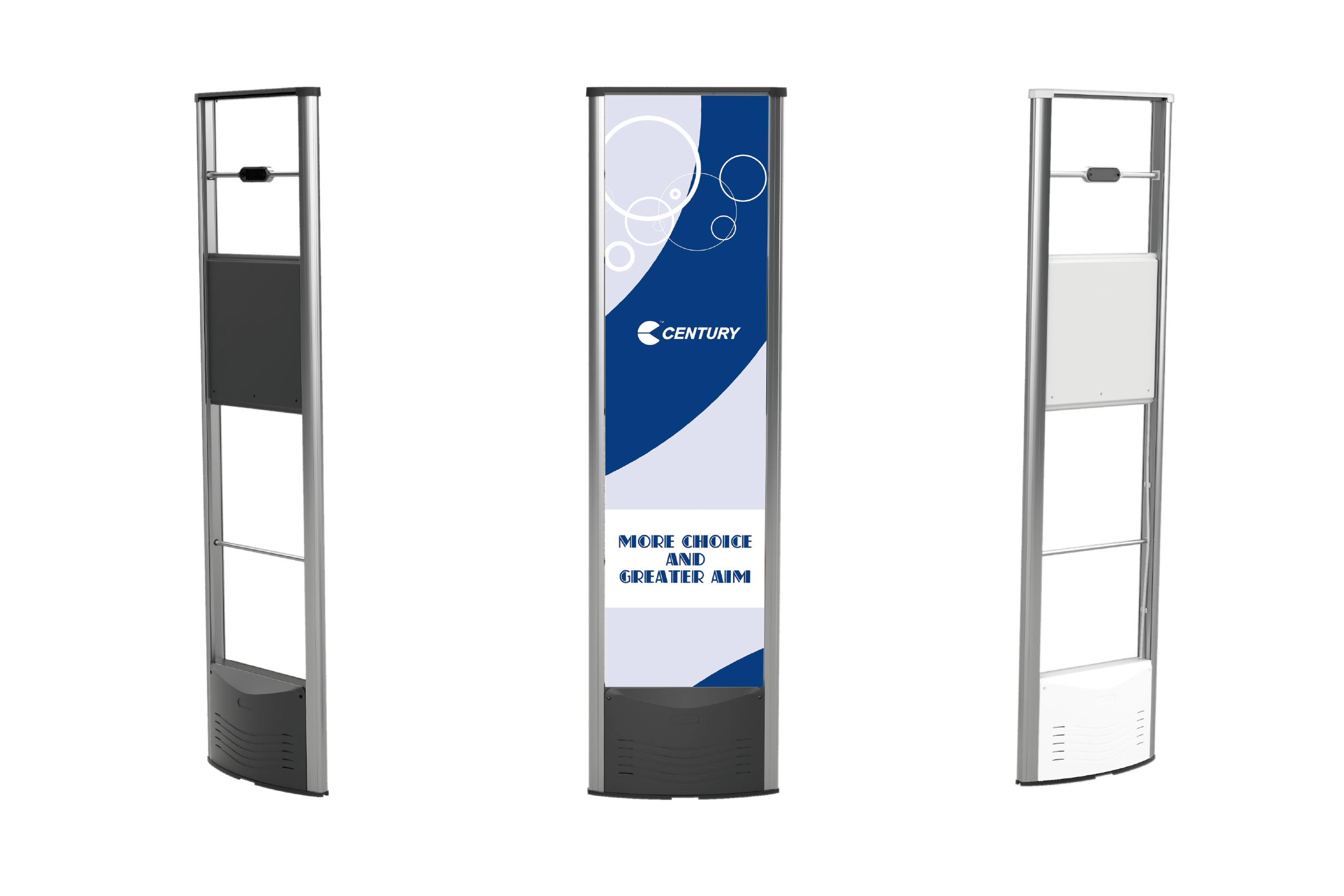

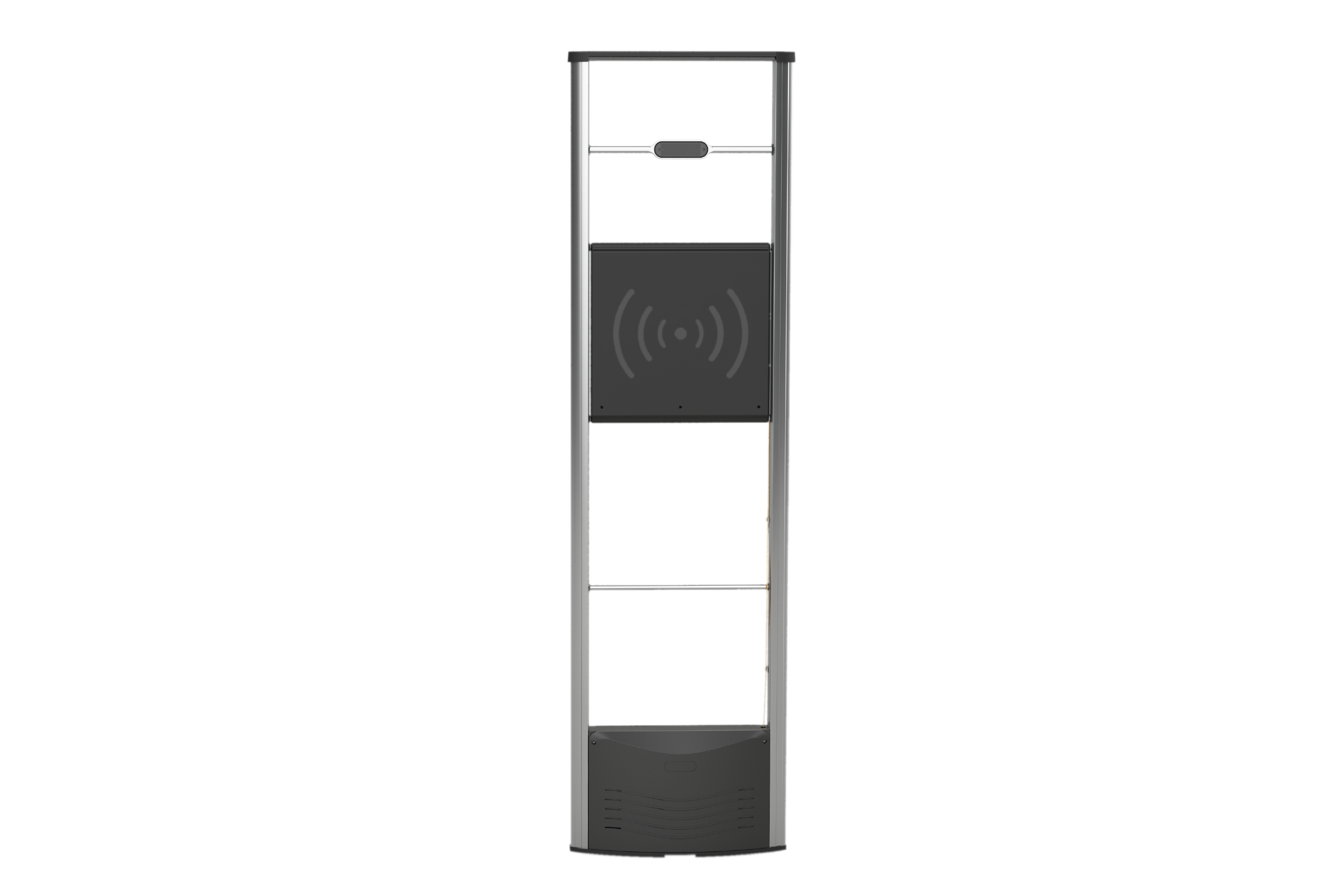

Century's latest dual-system integrates both RF and RFID technology,enabling more detailed and comprehensive man- agement. The new antenna is based on the Century Mercury(CA35), with iterative functions that enhance performance. RFID function as a modular part, it offers easy installation, low transformation costs, and excellent performance. This innovative system provides the optimal approach to enhance traditional RF anti-theft systems by incorporating RFID-based anti-theft capabilities.
SUPERIOR PERFORMANCE
• Long range detection
• Enhanced noise immunity Tag-Too-Close alert
• Virtual oscilloscope in configuration software
EASY INSTALLATION
• Built-in electronics
• Air synchronization
• Software configuration
• Signal waveform displayed by virtual oscilloscope
OPTIONAL FEATURES
• Remote service
• People counting
• V-Station management platform
• Poster panels
• RFID detection
ATTRACTIVE APPEARANCE
• Elegant design of frames and base covers
• Frames made with high quality aluminum alloy material
• Plastic parts made with high precision molds
Systems | CAB09 |
Central Frequency | 8.2 MHz |
Power Consumption | 24W |
Fuse of PSU | 900 mA |
Current(max) | 1.9A |
Voltage(input) | 24VDC |
RFID Technical Specification | |
Working Mode | Master/slave mode,single-machine mode,trigger mode |
RFID Protocol | EPC global Class1 Gen 2/ISO 18000-6C |
Modular Chip | Impinj E710 |
RFID Frequency | 902-928 MHz/865-868 MHz |
RFID Power | 33 dBm(Max) |
Antenna Interface | Four SMA ports |
Communication Interface | RS-232,RJ45,Bluetooth |
Current(max) | 2.0 A |
Voltage (input) | 12 VDC |
Environmental Requirements | |
Temperature | 0~50℃ |
Relative Humidity | 0~90%,non-condensing |

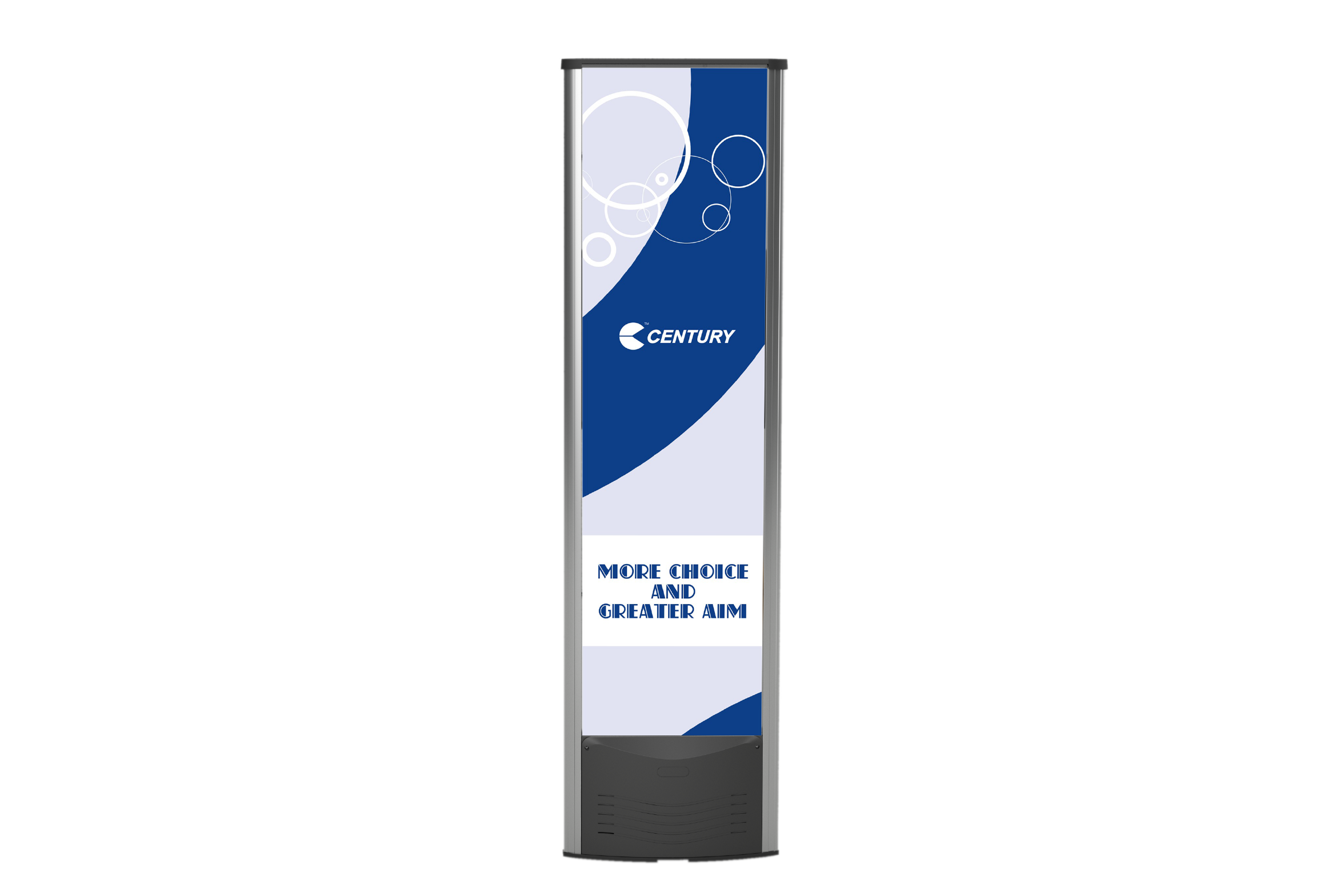

Advertising Panel Size | |
CA35L | 325*1393 mm |
CA35X | 381*1393 mm |
