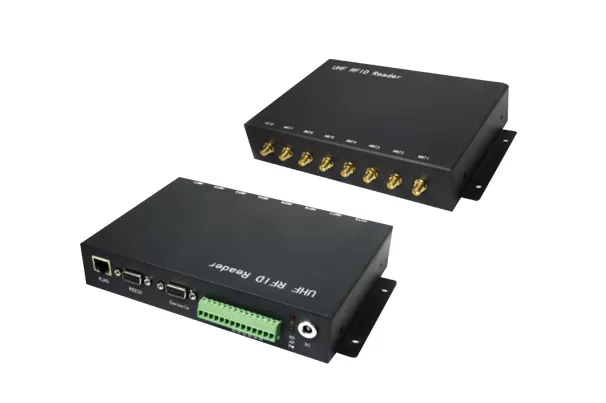

CER501 is a powerful 8-channel UHF RFID reader designed for high-efficiency, multi-tag environments. Engineered with the advanced IMPINJ E710/E510/E310 reader, it delivers exceptional performance and compatibility with EPC Global C1 Gen 2 and ISO 18000-6C tags. Supporting up to eight external antennas, this versatile device serves as a reliable overhead rfid reader and is perfectly suited for demanding applications in logistics, access control, fashion retail, warehousing, brand protection, and smart manufacturing.
Embedded Linux operating system paired with advanced middleware for edge computing, significantly reducing system complexity and simplifying deployment and maintenance.
Superior multi-tag reading capabilities, delivers exceptional multi-tag reading accuracy, supporting dense tag environments, large-scale data write/read operations, and real-time signal strength (RSSI) detection.
Robust network adaptability, supports for multiple communication protocols. Compatible with Web Service develop- ment for seamless integration and easy large-scale deployment.
Physical Specification

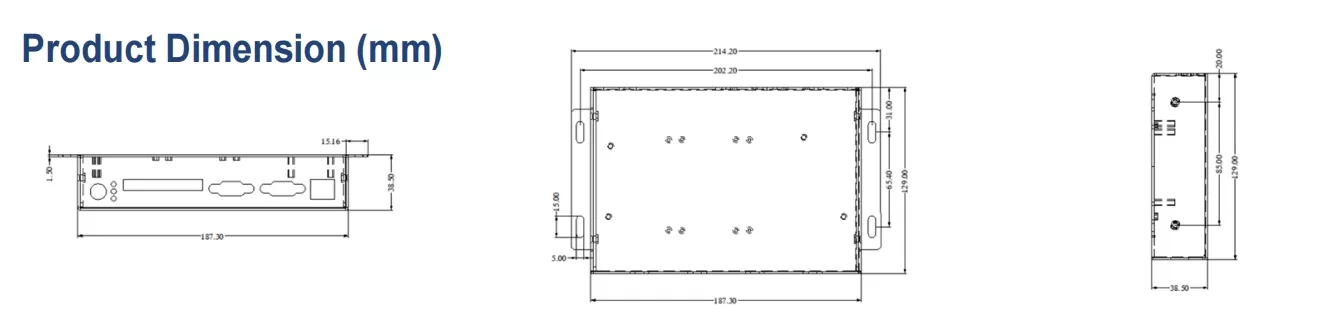

| Dimension (mm) | 215(L)*158(W)*38(H) (±1) |
| Weight (kg) | 1.27 (±0.01) |
| Housing Materials | Gray sheet metal |
| Antenna Interface | SMA (External thread inside hole) |
| Operating Temperature | -20～+55℃ |
| Storage Temperature | -20～+85℃ |
| Environment Humidity | 5% to 95%RH, no condensation |
Technical Specification
| RFID Protocol | EPC global Class1 Gen 2/ISO 18000-6C |
| Operating System | Linux |
| Frequency | 865~868MHz/902~928MHz (adjustable by country or region) |
| Chip | IMPINJ E710/E510/E310 |
| Receiver Sensitivity | E710: -87dBm; E510: -81dBm; E310: -74dBm |
| Frequency Hopping Technique | Broad-spectrum frequency hopping (FHSS) or fixed-frequency transmission mode |
| RFID Power | 0dBm-33dBm adjustable, +/-1.0dBm |
| RFID Read Range | E710: Range > 13m (compatible with 9DB antenna and tag 9662); |
| E510: Range > 11m (compatible with 9DB antenna and tag 9662); | |
| E310: Range > 10m (compatible with 9DB antenna and tag 9662); | |
| RFID Read Speed | E710: Maximum label reading speed＞900pcs/s; |
| E510: Maximum label reading speed＞600pcs/s; | |
| E310: Maximum label reading speed＞350pcs/s; | |
| Tag Buffer | >10W pcs @ 96bit EPC |
| RSSI Strength Detection | Support |
| Automatic Antenna Detection | Support |
| Reader Operating Mode | Master/slave mode, single-machine mode, or trigger mode |
| Power Supply | Power adapter: AC input 100~240V/50-60Hz, DC output 12V/4A; |
| DC power supply: 12V to 24V/4A, POE optional | |
| Power | 5W~24W |
| GPIO | 3 inputs, 3 outputs; (4 inputs, 8 outputs optional) |
| Communication Protocol | RS-232, TCP/IP, Modbus, HTTP/HTTPS, MQTT, RabbitMQ |
| Hardware Interface | RS232, RJ45 |
| Programming Language | C#, JAVA |
| Development Environment | Linux, Android, Windows, PLC, Web |
