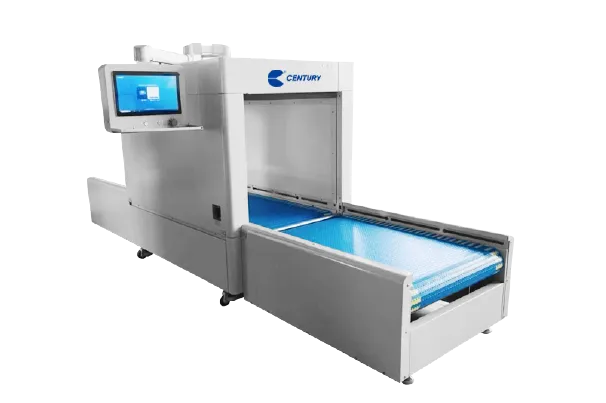

Century RFID Tunnel (CER910) is a fully automated RFID scanning system built for high-speed, high-density tag reading in warehouse and logistics operations. It works independently or seamlessly integrates with automated conveyor systems for greater flexibility.
With intelligent automation, the CER910 boosts efficiency, cuts labor costs, and optimizes warehouse performance for a smarter, faster logistics future.
Anti-EMI Design
Improves RFID reading accuracy
Motion Mode
Enhances tag reading performance on the move
Three-Zone Control
Easily integrates with sorting and weighing systems
Precision Servo Motor
Ensures reliable, high-frequency operation
| Physical Specifications | |
Internal Size（mm） | 1200*650*650 |
External Size（mm） | Total: 2722*890*1342 Middle section: 1322*890*1342 Front & Rear Section：700*800*580 |
Weight（kg） | Approximately 420 |
Ground Clearance（mm） | 500 |
Enclosure Material | Powder-coated sheet metal |
Operating Voltage | 220V |
Conveyor Belt | Chain-plate conveyor |
Scanning Mode | Static + Dynamic |
Operating Temperature | -10~60℃ |
Operating Humidity | 5%~95% RH, non-condensing |
Operating Efficiency | 8~10 cartons per minute |
| Technical Specifications | |
Operating System | Windows 7 / Windows 10 |
CPU | Intel i5 4300 |
Memory / Storage | 8G+256G |
Display | 15.6" screen, 1920×1080 resolution, 16:9 aspect ratio |
Communication Interfaces | RS232 / TCP IP / USB |
Electrical Control System | Domestic IO controller (optional Siemens) |
Photoelectric Sensor | Domestic (optional Siemens) |
Rolling Door System | Stepper / Servo |
Speed | 50 m/min |
Load Capacity | 60 kg |
Power Consumption | Max 650 W, Average 150~200 W |
RFID Specifications | |
RFID Protocol | EPC global Class1 Gen 2 / ISO 18000-6C |
RFID Module | Impinj E710 (optional Impinj R420) |
Operating Frequency | 840~960 MHz (adjustable per country/region requirements) |
Operating Mode | Wideband frequency hopping (FHSS) / Fixed frequency |
Output Power | Max. 33 dBm |
Antenna Interface | TNC*4 |
Antenna | 8 dBi circular polarization*4 |
Electromagnetic Shielding Distance | < 5cm |
RFID Reading Capacity | 200 pcs/box (E710 module), 600 pcs/box (R420 module) |
Software Support | SDK and secondary development supported |
Optional Specifications | |
Weighing | Domestic weighing module |
Barcode | Carton label scanning |
Sorting | Electric lifting transfer / Pneumatic push rod |
Production Line Integration | Supported |
