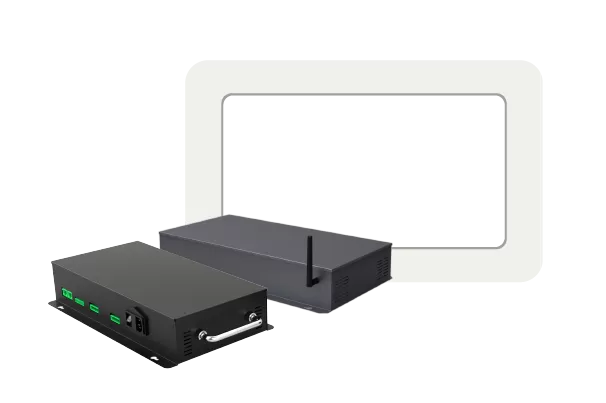

CA7706 is Century’s new-generation, cost-effective AM floor antenna, from Century’s Essential Systems, powered by the Essential Controller - CAC57. It supports remote control, app tuning, and software adjustments - all designed for fast setup and stable performance. Tested in large-scale deployments, it’s the ideal choice for cost-effective AM protection.
Compact design with integrated board
Concealed, waterproof installation under floor tiles for seamless protection
Supports remote control, app-based adjustments, and software tuning
Lightweight, cost-efficient, and easy to deploy and transport
| Central Frequency | 58KHz |
| Working Voltage | AC15V-0-15V AC48V |
| Power Consumption | <80W (1 controller + 2 antennas) |
| Power Supply | 115/220V 50-60HZ/AC |
| Detection Height (normal environment) | RS01: 1m+ |
| T010: 1.2-1.4m | |

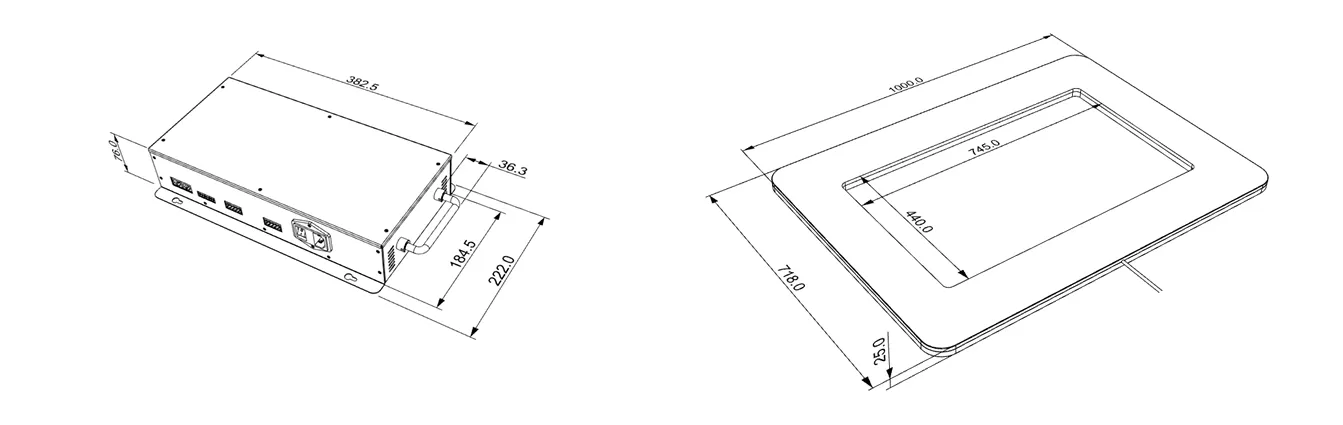

| Floor Antenna Dimension (L*W*T) (mm) | 2000*720*25 |
| 1800*720*25 | |
| 1600*720*25 |
