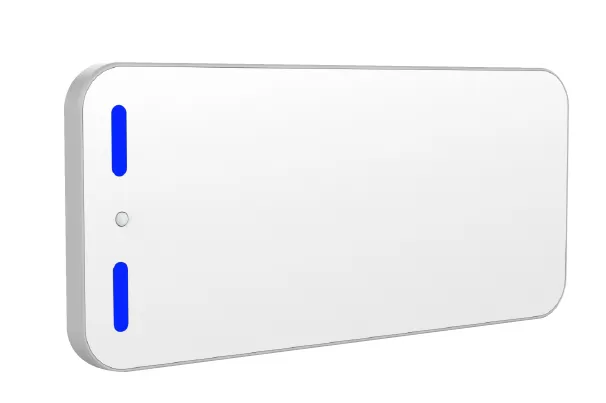

The Century RFID Overhead Reader CER511X is the latest high-performance RFID UHF smart overhead reader, supporting the ISO 18000 - 6C protocol and standing out as a premium rfid hardware for intelligent identification scenarios. Equipped with a built-in high-gain narrow-beam antenna and AI-powered tag status detection, it delivers excellent anti-miss and anti-false read performance. It supports both overhead and side mounting, with installation heights up to 4.5 meters. Ideal for apparel, retail, library and archive management, personnel access control, asset tracking, and intelligent warehousing, etc.
Built-in Linux system to streamline customer application development
Integrated infrared and audio-visual alarms with low power consumption in trigger mode
Integrated high-gain narrow-beam antenna with AI-powered tag detection
Overhead mounting at 2.5–4.5m height, covering 2–3.8m wide passages
Ceiling and wall-mount are available, with greatly reduced installation costs
Physical Specification
| Dimension | 480*220*50mm (without bracket) |
| Weight | 2.15kg (without bracket and packaging) |
| Mounting Way | Ceiling, wall-mounted |
| Materials | Aluminum + cold-rolled sheet +PMMA |
| Operating Temperature | -20℃~+60℃ |
| Storage Temperature | -30℃~+70℃ |
| Humidity Conditions | 5% to 95%RH, no condensation |
| Installation Height | 2～3.8m |
Technical Specification
| RFID Protocol | EPC Global Class1 Gen 2/ISO 18000-6C |
| Frequency | 902-928MHz, 865-868MHz or customized |
| RFID Power | 8~33dBm |

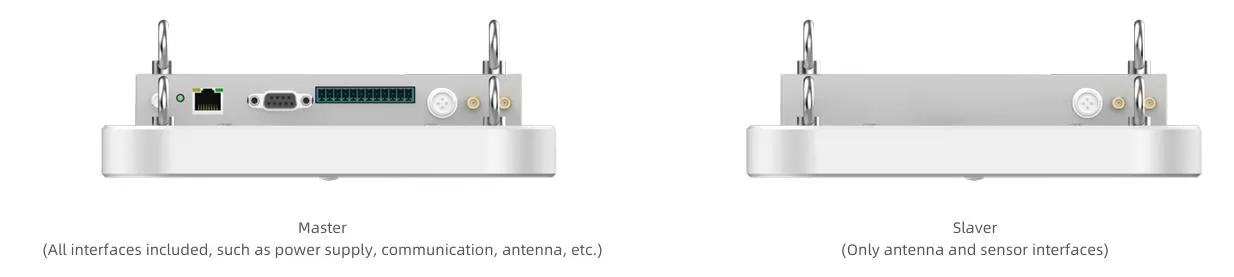

| Communication Interface | RS-232(DB9), RJ45 |
| Power Supply | AC 220V+10%, 47~63Hz |
| Power Consumption | 45W |
Package Specification
| Package Size | 490*130*270mm |
| Package Weight | Master: 2.5kg; Slaver: 2.0kg |
