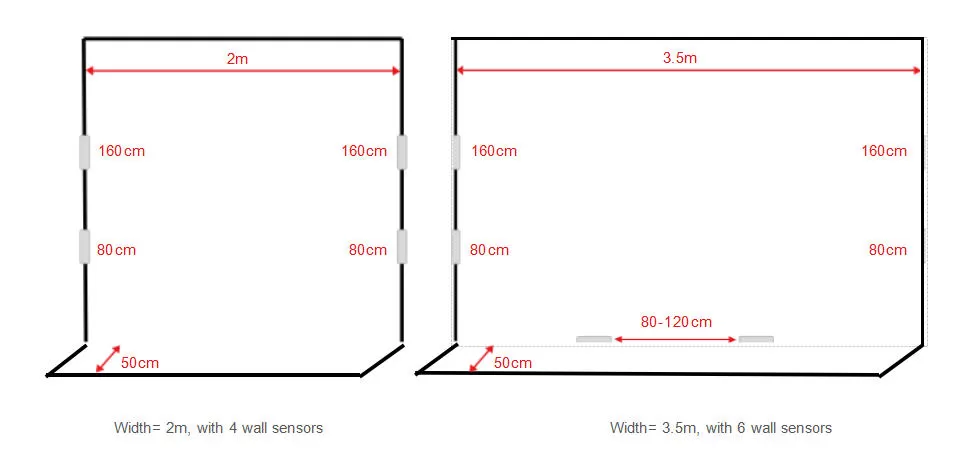

Century Portalguard (loop antenna, CAC70) is designed in a ring shape, delivering exceptional and independent Acousto-Magnetic (AM) EAS protection for environments that require a high and wide vertical detection area. It can be hidden in the wall or on the surface of the door frame, and provides protection up to 2.5m height and 3.5m width to maximize customer flow and optimize merchandising floor space. This versatile and space-saving device stands out as a premium eas security gate, with its loop antenna also serving as an excellent hidden detection solution suitable for airports, shopping malls, and other locations where underground antennas are not permitted.

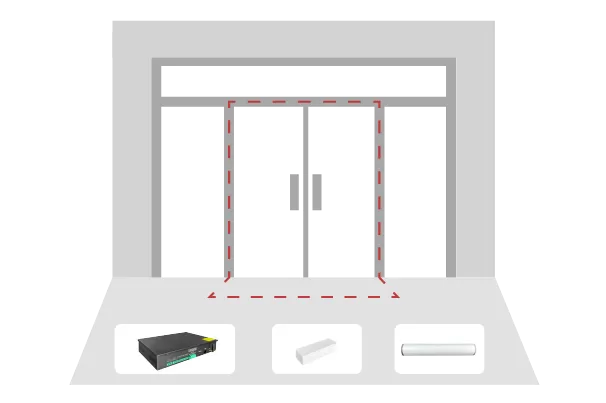

Flexible cabling design, customized to fit door configuration
Concealed installation, maximize customer flow & optimize sales space
Ultra-high detection range & height, enhance shopping experience
APP debugging is available, fast & effortless maintenance
| Technical Specifications | |
| Operating Frequency | 58KHz ± 500Hz |
| Power Input | 100~120VAC, 60Hz or 220~240VAC, 50Hz |
| Main Power Fuse | 2A, 250V, delay fuse |
| Maximum Current | 120V, ＜ 0.54A or 240V, ＜ 0.27A |
| Maximum Power Consumption | ＜ 65W |
| Environmental Requirements | |
| Operating Temperature | 0-50°C |
| Relative Humidity | 0- 90%, no condensation |
| Name | Dimension | Picture |

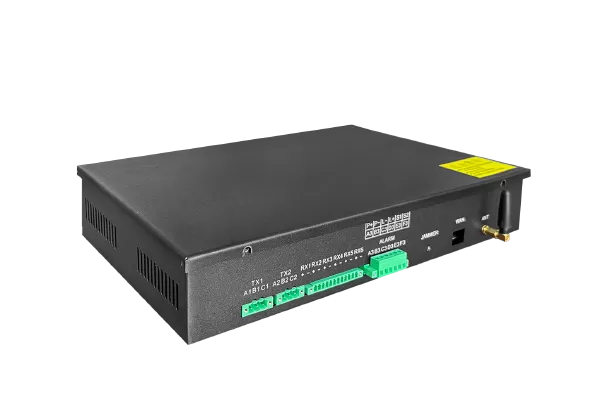

| Controller | 380*214*75mm |  |

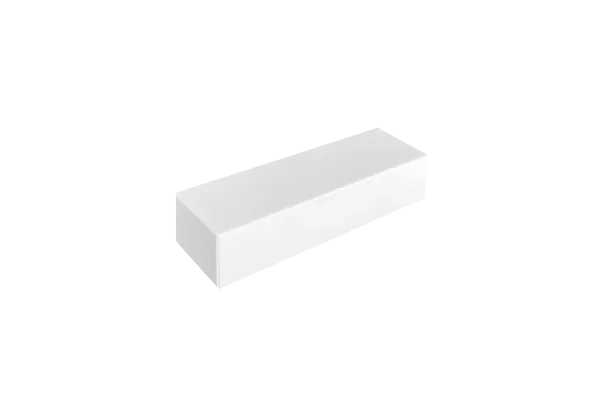

| Wall Sensing Probe | 118*38*22mm |  |
| Ground Sensing Probe | 158*25*25mm |  |
Note: For installation details, please refer to installation instructions.
